XF5196E

Fedar XF5196E Digital Dye Sublimation Printer uses 6 Epson Original I3200-A1 print heads. Max Printing Width: 1900mm. Max Resolution: 3200DPI. Max Printing Speed: 2pass: 240 Sqm/Hr.
Hotline：0086-020-85640200

DETAILS

Features

Model: Fedar XF5196E High Speed Heat Transfer Paper Printer

Printing Width: 1900mm

Max Resolution: 3200DPI

Print Head: Six Epson Original I3200-A1 Heads

Printing Speed:
2pass: 240 Sqm/Hr

3pass: 120 Sqm/Hr

4pass: 95 Sqm/Hr

Parameters

Model	Fedar XF5196E High Speed Heat Transfer Paper Printer
Printing Size	1900mm
Printhead Type and Numbers	6 EPSON Original I3200-A1 Heads
Max Resolution	3200DPI
Max Materials Input Size	2000mm
Ink Color	Double C M Y K
Ink Type	Water-Based Ink, Pigment Ink
RIP Software	MAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA
Interface	Gigabit Port
Print File Format	BMP, TIF, JPG, PDF Etc.
Drying System	Extra Front Heating System
Materails Feeding Method	Roll to Roll, Leaf
Color Management	ICC Based; Density & Curves Adjustable
Power Supply	50HZ/60HZ, 220V, 10A
Package Dimension (LWH)	30701550962mm
Gross. Weight	500KGS
Working Environment Temperature	20C-35C (68F-95F)
Working Environment Humidity	35%-65%Rh
Printing Speed	2pass: 170 Sqm/Hr 3pass: 110Sqm/Hr 4pass: 85 Sqm/Hr

Details

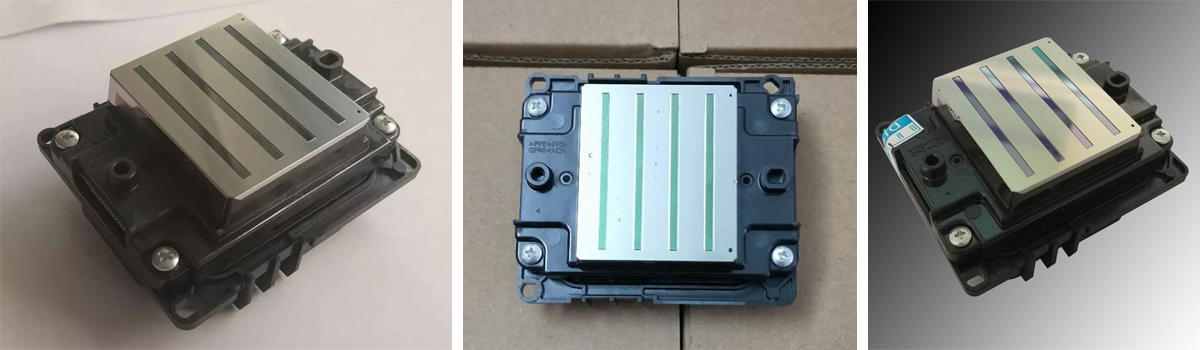

1.PRINT HEAD

Fedar FD5196E High Speed Heat Transfer Paper Printer uses Four Epson original I3200-A1 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI. The printing speed can be more than 120㎡/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson I3200-A1 head adopts automatic cleaning and automatic flash spray function to prevent blockage.

Zhengzhou Jinyang Digital Technology Co., Ltd.

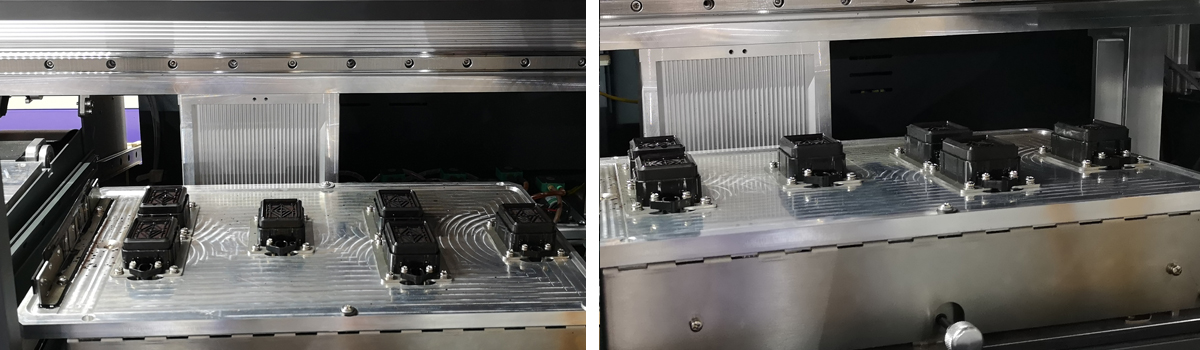

2.CAPPING SATAION

FD5196E High Speed Heat Transfer Paper Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

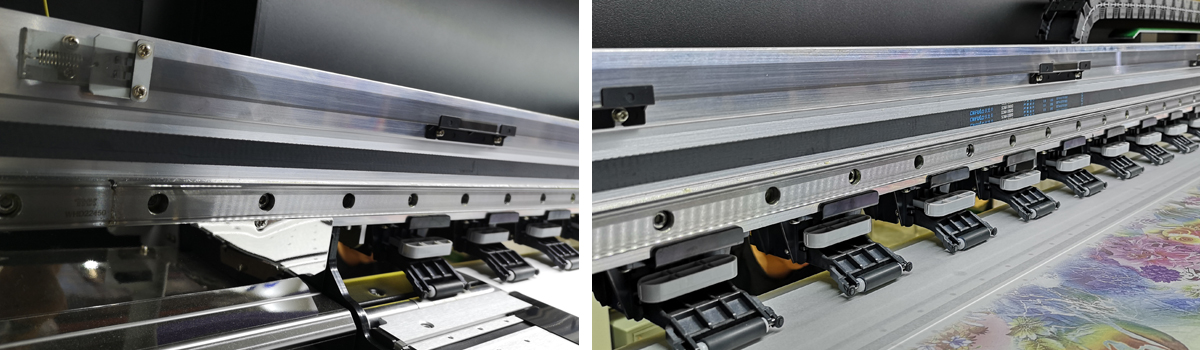

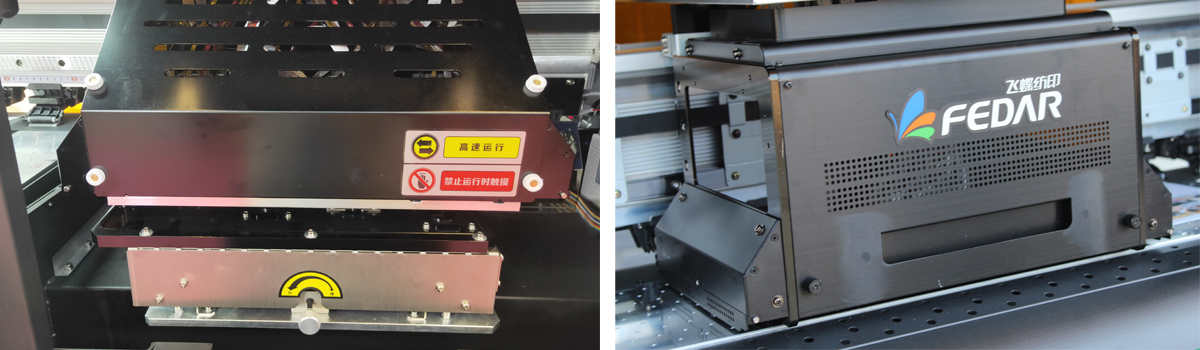

3.PRINTING CARRIAGE

The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

4.HIGH-PRECISION PLATPORM

The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

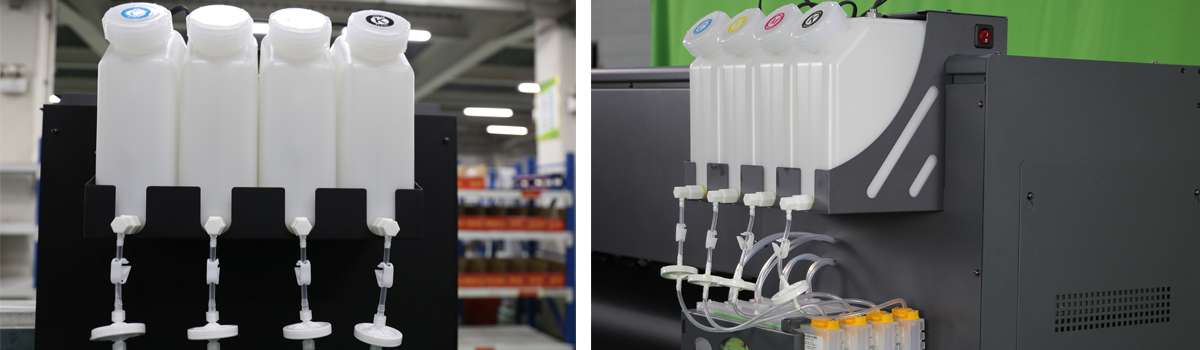

5.INK TANK

FD5194E Digital Dye Sublimation Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

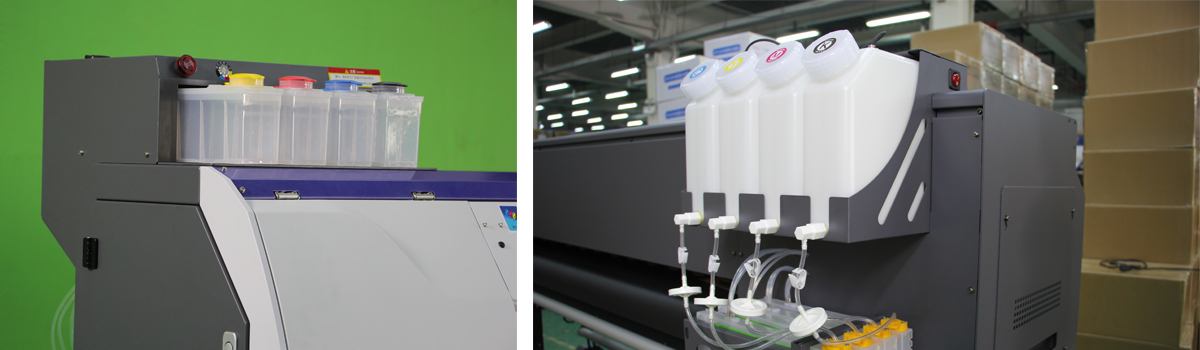

6.INTELLIENT SHORTAGE ALARM SYSTEM

Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

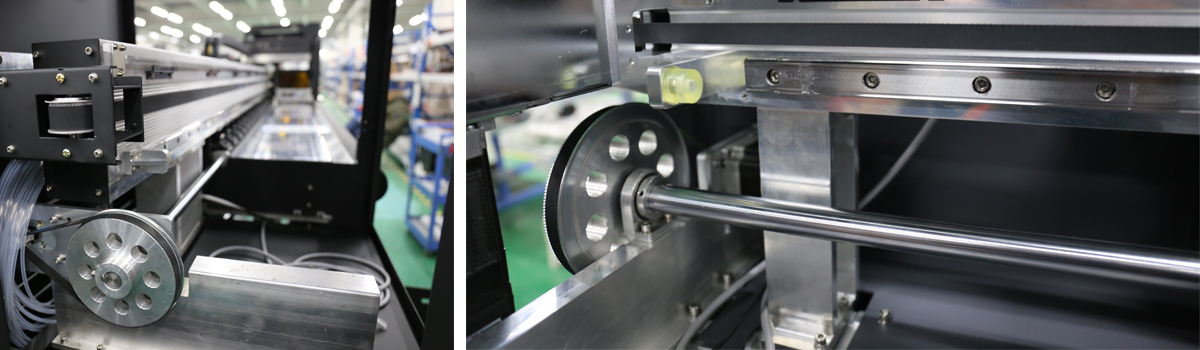

7.STABLE FEDAR SELF DESIGN PRINTING SYSTEM

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

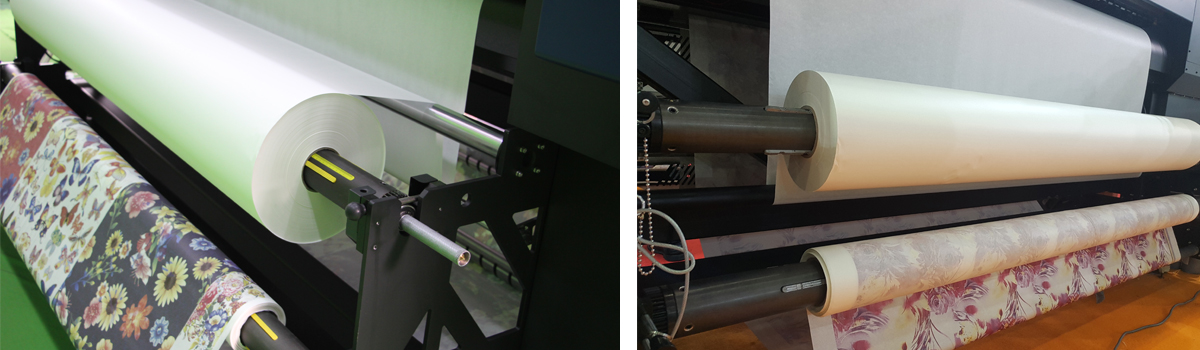

8.AUTO FEEDING AND TAKING UP SYSTEM

This auto feeding and taking-up device with tension sensor bar makes the force even and makes the paper smoother. It's sample and convenient to take up printed media.

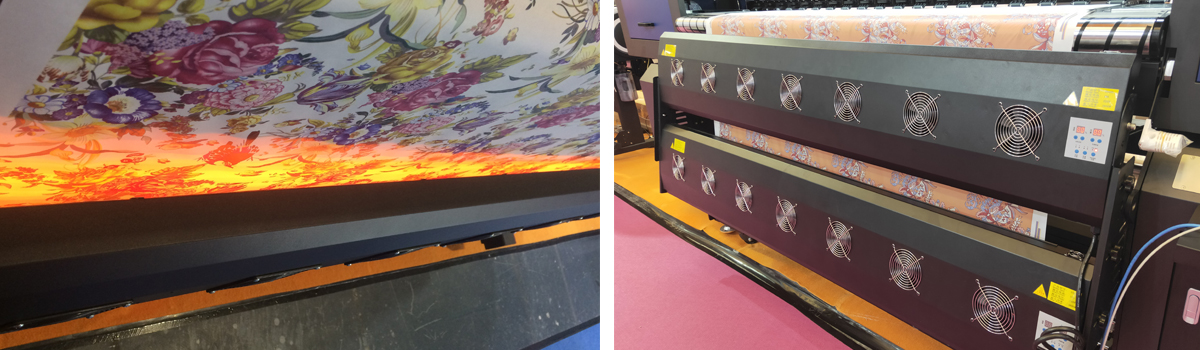

9.INTELLIGENT INFRARED DRY SYSTEM

Fedar FD5194E digital dye sublimation printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

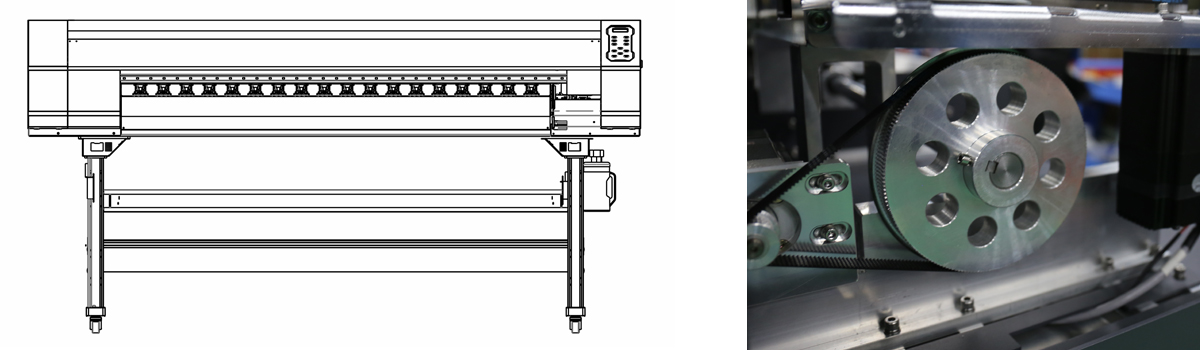

10.INDUSTRIAL DESIGN

The whole frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.
