Model |
Fedar XF1900 Dye Sublimation Printer |
| Printing Size | 1900mm |
| Printhead Type and Numbers | 2 EPSON Original I3200-A1 Heads |
| Max Resolution | 3200DPI |
| Max Materials Input Size | 2000mm |
| Ink Color |
Double C M Y K |
|
Ink Type |
Water-Based Ink, Pigment Ink |
|
Ink Supply Type |
BuIk Ink System |
| RIP Software | MAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA |
| Interface | Gigabit Port |
|
Print File Format |
BMP, TIF, JPG, PDF Etc. |
| Drying System |
Extra Front Heating System |
|
Materials Feeding Method |
Roll to Roll, Leaf |
| Color Management | ICC Based; Density & Curves Adjustable |
| Power Supply |
50HZ/60HZ, 220V, 10A |
| Package Dimension (L*W*H) | 3060*940*970mm |
| Gross. Weight | 240KGS |
| Working Environment Temperature | 20C-35C (68F-95F) |
| Working Environment Humidity | 35%-65%Rh |
|
Printing Speed
|
2pass: 98 Sqm/Hr
3pass: 64 Sqm/Hr
4pass: 50 Sqm/Hr
|
|

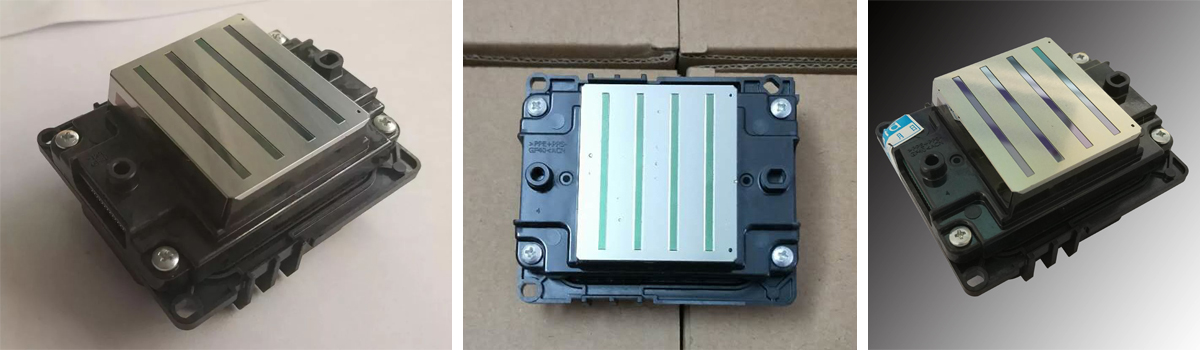

1. PRINT HEAD
Fedar FD1900 Dye Sublimation Printer uses double Epson 3200 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI. The printing speed can be more than 98㎡/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson3200 head adopts automatic cleaning and automatic flash spray function to prevent blockage.
 |
|

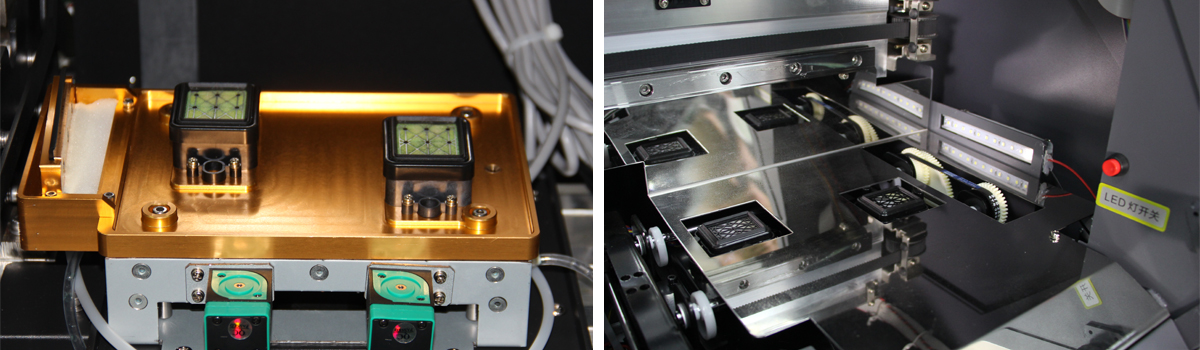

2. CAPPING SATAION
FD1900 Dye Sublimation Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.
 |
|

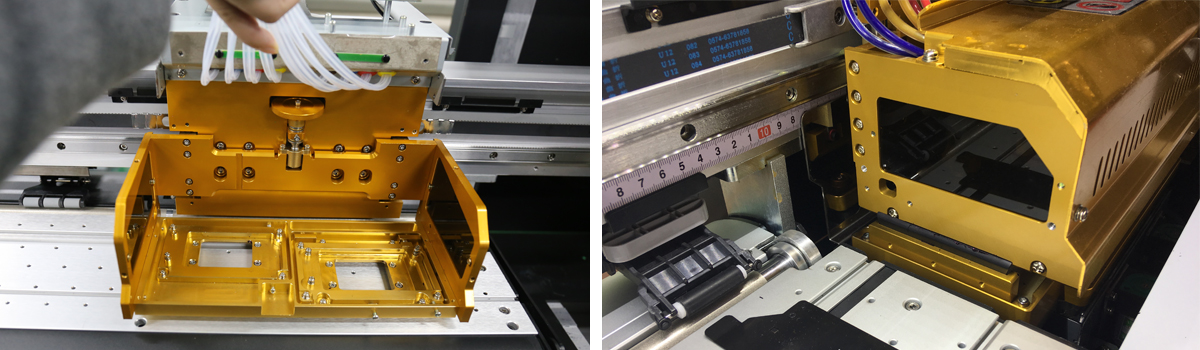

3. PRINTING CARRIAGE
The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.
 |
|

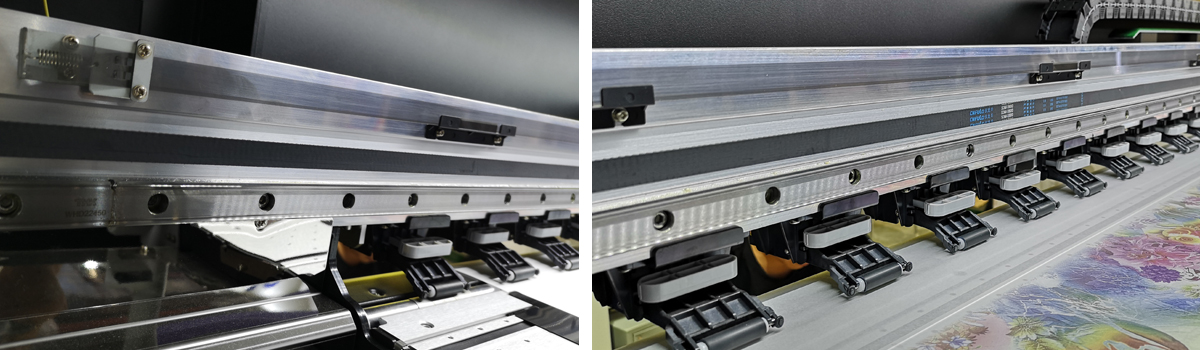

4. HIGH-PRECISION PLATPORM
The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.
 |
|

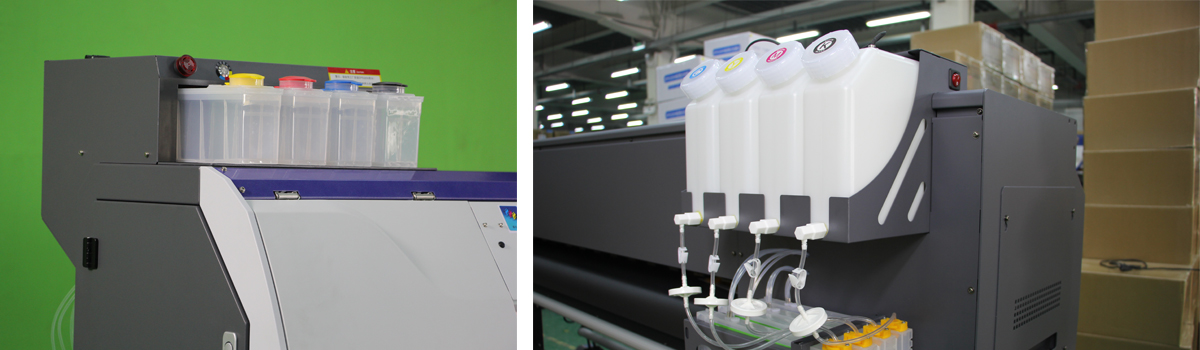

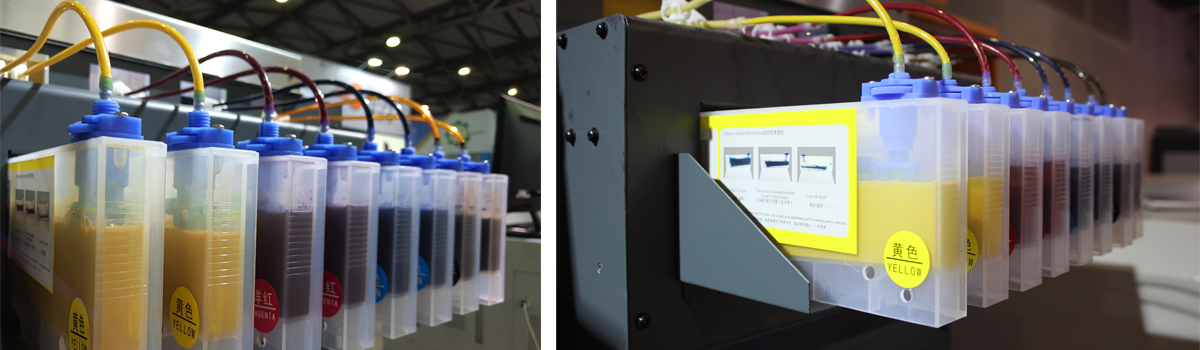

5. INK TANK
FD1900 Dye Sublimation Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
 |
|
6. INTELLIENT SHORTAGE ALARM SYSTEM
Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.
 |
|

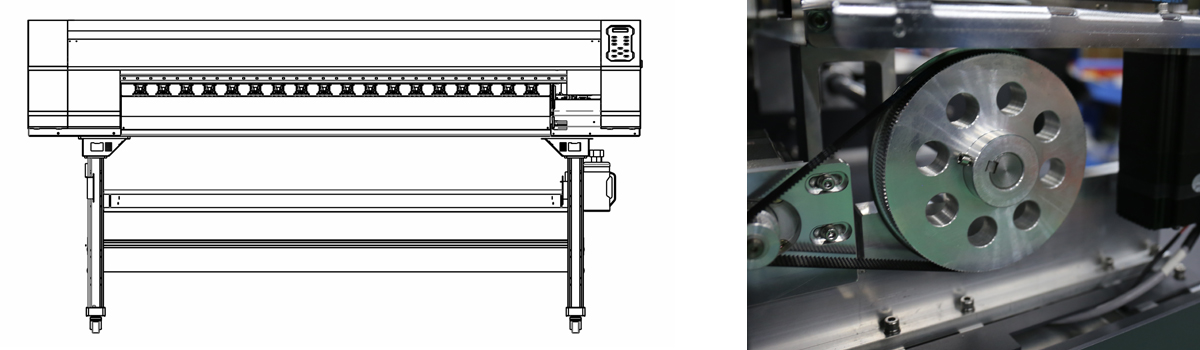

7. STABLE FEDAR SELF DESIGN PRINTING SYSTEM
The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.
 |
|

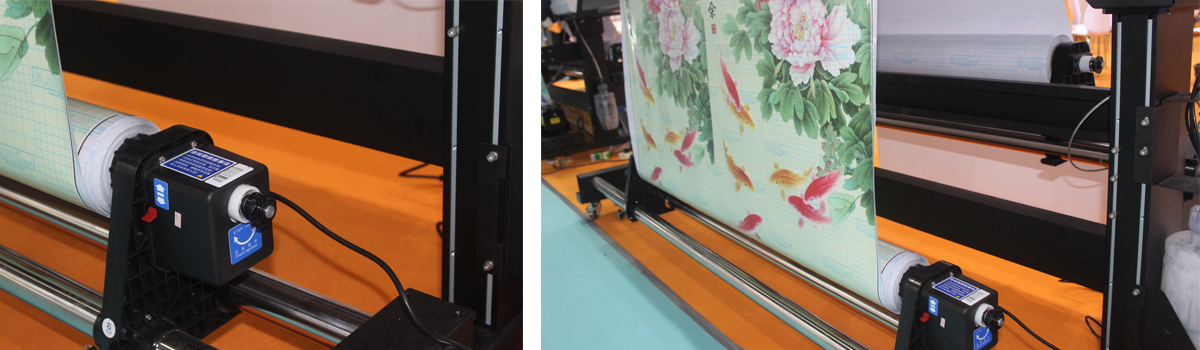

8. DOUBLE MOTOR POWER TAKING UP SYSTEM
This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.
 |
|

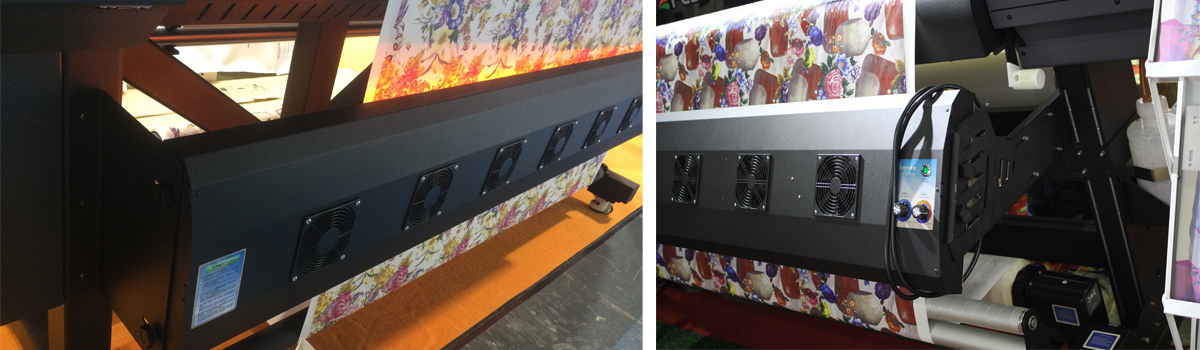

9. INTELLIGENT INFRARED DRY SYSTEM
FD1900 sublimation printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.
 |
|
10. INTELLIGENT INFRARED DRY SYSTEM
FD1900 sublimation printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.
 |
